RFinder PortAzEl Portable 12V Bluetooth Az El Rotator Now Shipping!!!
RFinder PortAzEl Portable 12V Bluetooth Az El Rotator Now Shipping!!!
Regular price
$1,599.00 USD
Regular price
$1,599.00 USD
Sale price
$1,599.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Now shipping from California!

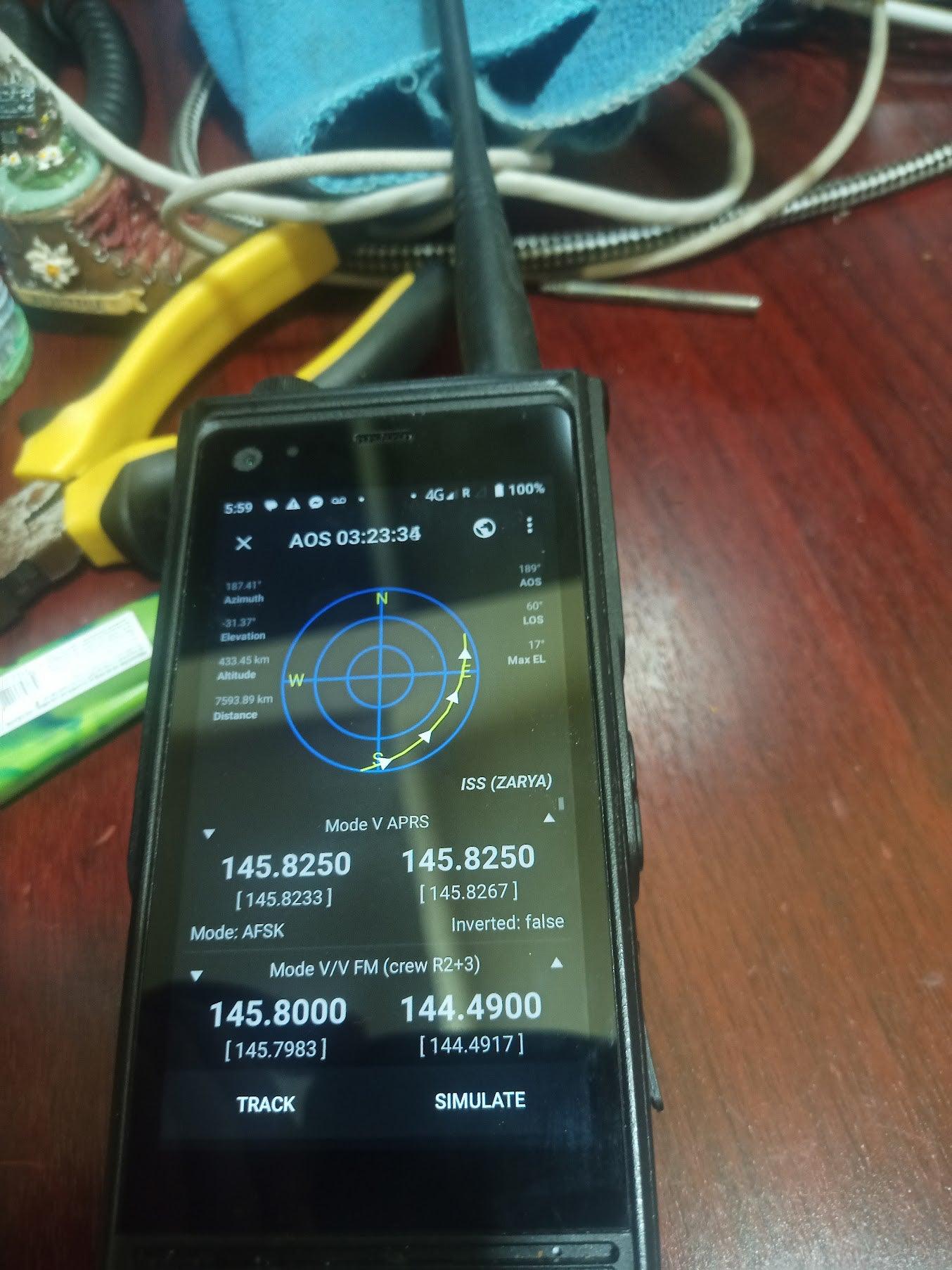

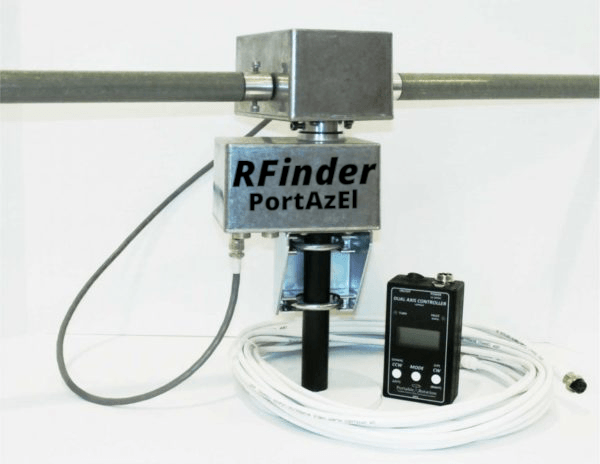

Made in USA from high quality CNC machined components: The new RFinder PortAzEl. Derived from an older product created originally by Portable Rotation now greatly improved. New controller that is Bluetooth enabled to allow control from the RFinder Android radios. Yes, all-in-one software included in RFinder to control the antenna and allow communications directly with birds with FM transponders. All automatic...Doppler, magnetic deviation, satellite tracking directly from your RFinder radio (or a PC or Mac using serial over USB)...contact us if you want to upgrade your older Portable Rotation device to the new controller!
Specifications:
| Power | 12-13.95 VDC, 170ma idle/<500ma Turning @12.5v |
| Mast Diameter | 25mm/32mm |
| Arm Diameter | 25.5mm |
| Azimuth Rotation | 540 degree |
| Azimuth Resolution | 1 degree |
| Elevation Rotation | 180 degree |
| Elevation Resolution | 1 degree |
| Control | Pulse Width Modulation Two speed motor |
| Modes of operation | Manual antenna movement Automatic antenna movement Remote control via serial or BT |
| Automatic Calibration | Acceleromoeter/magnetometer sensor provides auto antenna calibration and return to home position |
| Calibration mode | Any-Direction Calibration' offering easy antenna system deployment |
| USB Serial control | GS232A proocol via USB A/B cable |
| Bluetooth Control | GS232A proocol via USB SPP |
| Protection | Rotational Jam detection with auto-stop |
| Control Cable | 25' 4 conductor rotor cable 18awg max 100' |
| Antenna load | Maximum 8lbs (balanced) |
| Weight | Rotor head w/18" arms: 7.5lbs, Controller: 8oz |
